Single Phase AC/DC Solid State Relay Basic Type SSR- DA/SSR- AA High-Voltage Type SSR- DA-H/SSR- AA-H

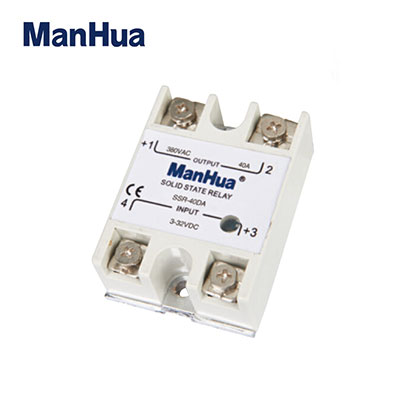

Type: Basic Type SSR- DA

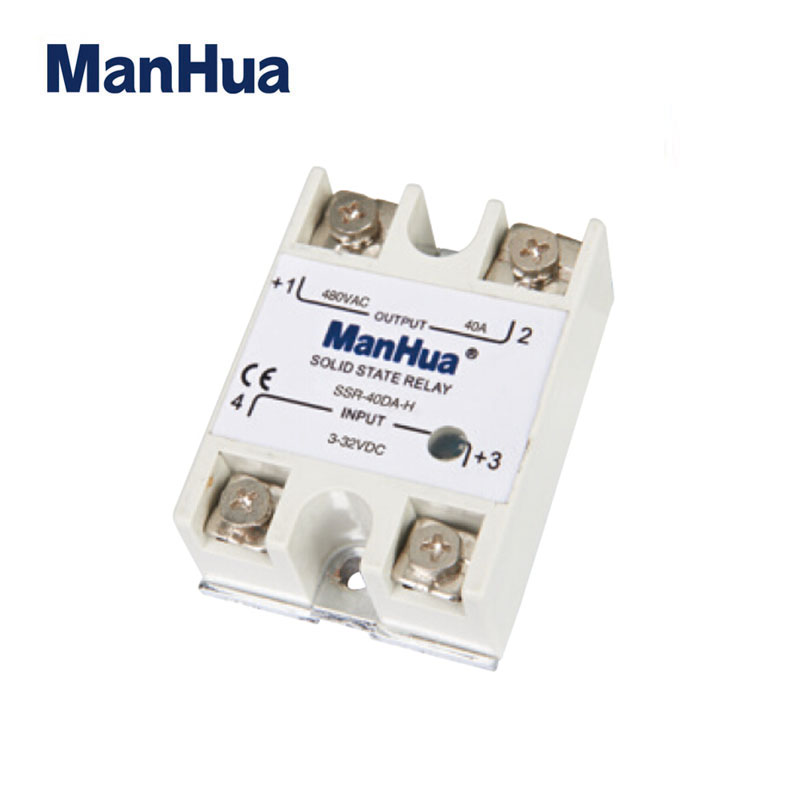

High-Voltage Type SSR- DA-H

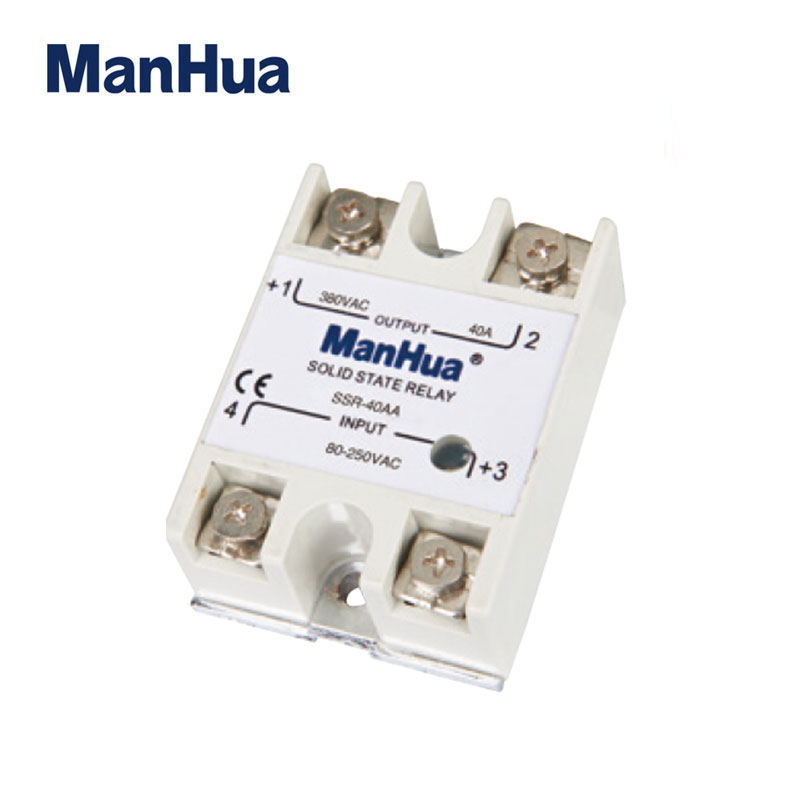

Basic Type SSR- AA

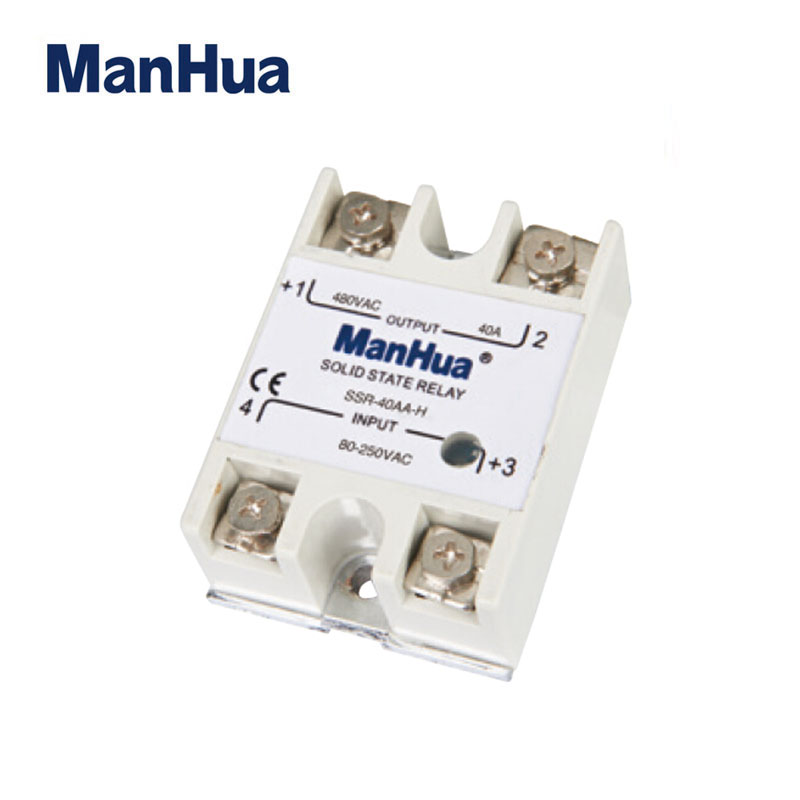

High-Voltage Type SSR- AA-H Request quotation
Video PDF Download Contact us
Appearance



Type
 Basic Type SSR- DA
 High-Voltage Type SSR- DA-H
 Basic Type SSR- AA
 High-Voltage Type SSR- AA-H
Load Current
 10A、25A、40A、50A、60A、75A、90A
Load Voltage
 24-380VAC
 90-480VAC
 24-380VAC
 90-480VAC
Control Voltage
 3-32VDC
 80-250VAC
Control Current
 DC3-25mA
 AC ≤ 12mA
On Voltage
 ≤ 1.5V
Off Leakage Current
 ≤2mA
 ≤4mA
 ≤2mA
On-off Time
 ≤10ms
Dielectric Strength
 2500VAC
Insulation Resistance
 1000MΩ/500VDC
Ambient Temperature
 -30℃ ~+75℃
Mounting Methods
 Screw mount
The Work Instructions
 LED
Weight
 132g

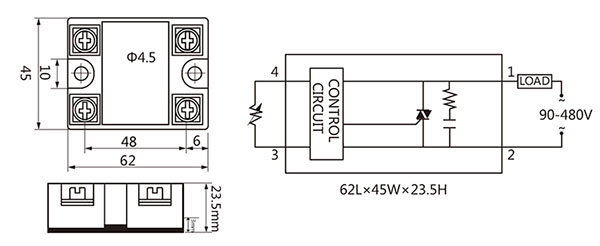

Wiring Drawing(mm)
Instruction
 1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.
2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.
Note
 □ Means load current
