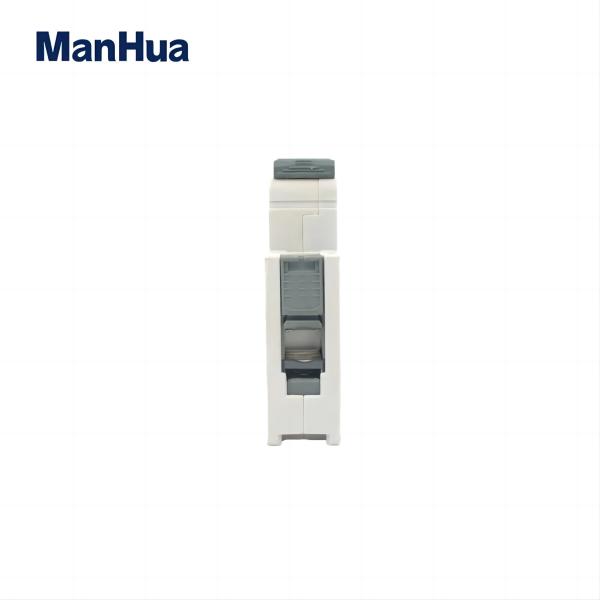

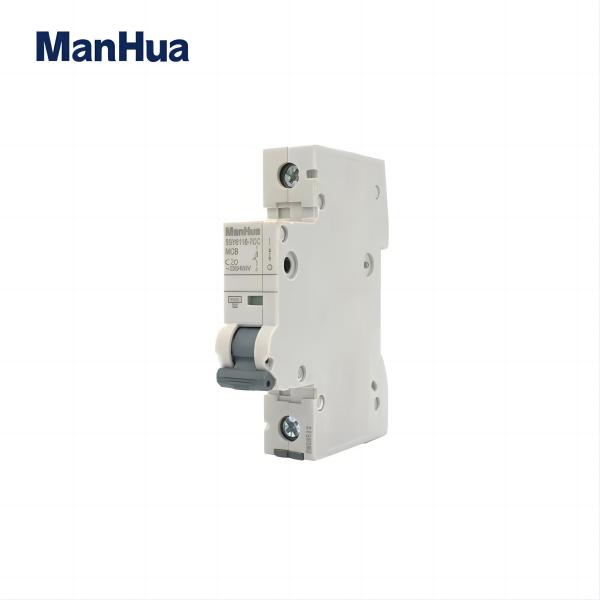

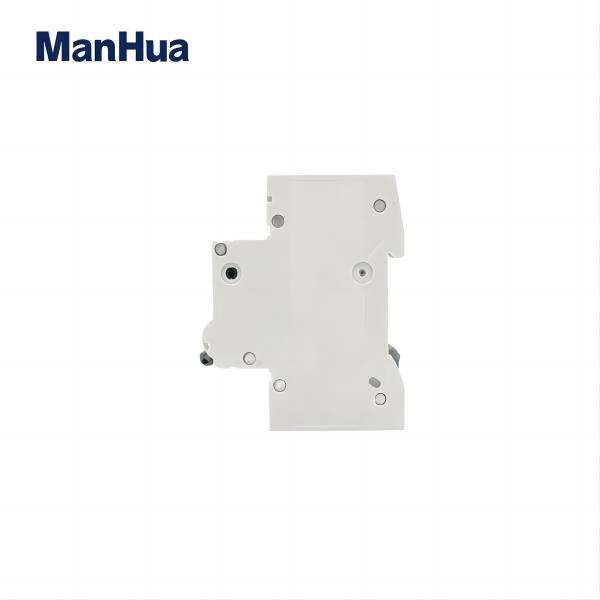

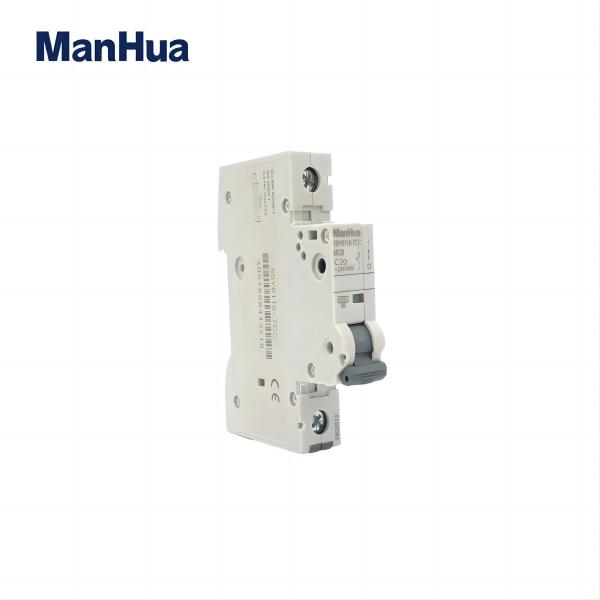

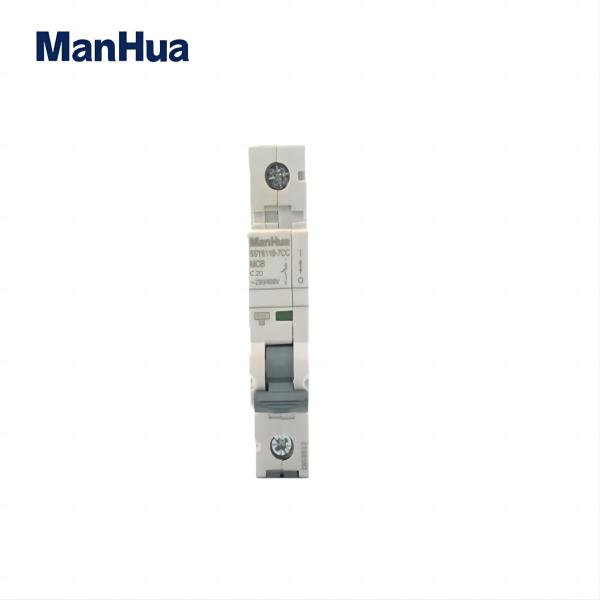

5SY6116 MCB Single Pole C Curve 16A 25A 63A 1P 6KA Miniature Circuit Breaker Short-Circuit Overload Protection AC230V DIN Rail

is_customized: Yes Model Number: 5SY6116
Type: Mini Origin: Mainland China
Certification: CE Product name: Miniature Circuit Breaker
Rated current: 20A/25A/32A/40A/50A/63A Breaking capacity: 6KA
Standard: IEC60898-1 Pole: 1P/Single pole
Color: grey Material: copper
Mechanical Life: 10000 times Frequency: 50/60Hz
installation: 35mm DIN Rail Application: Household, construction and hospital
Warranty: one year Keywords: MCB
Product Keywords: Thermal Overload Protector Switch Function: Overvoltage and Shortcircuit protection
Dedicated: Industrial equipment protection packing: carton Request quotation

MCB Single Pole 5SY6116 C Curve 16A 25A 63A 1P 6KA Miniature Circuit Breaker Short-Circuit Overload Protection AC230V DIN Rail

Product Brand

ManHua

Product Type

5SY6116-7CC

Product Name

Miniature Circuit Breaker

Rated Voltage Ue

230/400VAC

Rated Current

20/25/32/40/50/63A

Rated frequency

50/60Hz

Number Of  Pole

1P

Product keywords

Short Circuit/Overload/isolation

Standard

IEC/EN60898-1

Thermal operating limit(In)

1.13-1.45

Breaking capacity

6kA

Degree of protection

IP40(top),IP20(terminal),with connected conduct

Material

Flame Resistant Plastic and Copper

Mechanical life(0-C)

10000

Application

Household and industrial circuit breakers

installation

35mm DIN Rail

Product Function

Short-circuit equipment protection

Packing

Carton

Terminal tightening torque(N.m)

2.5-3

trip curve

C

Ambient temperature

-40℃~+85℃

Altitude

20000

Operation method

operating handle
