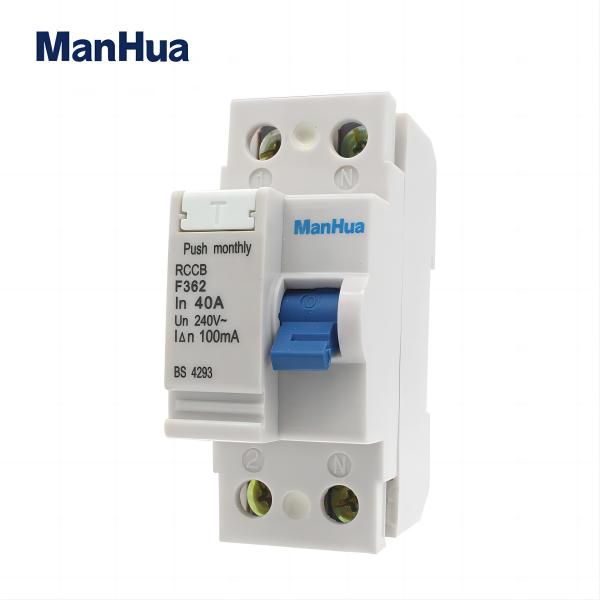

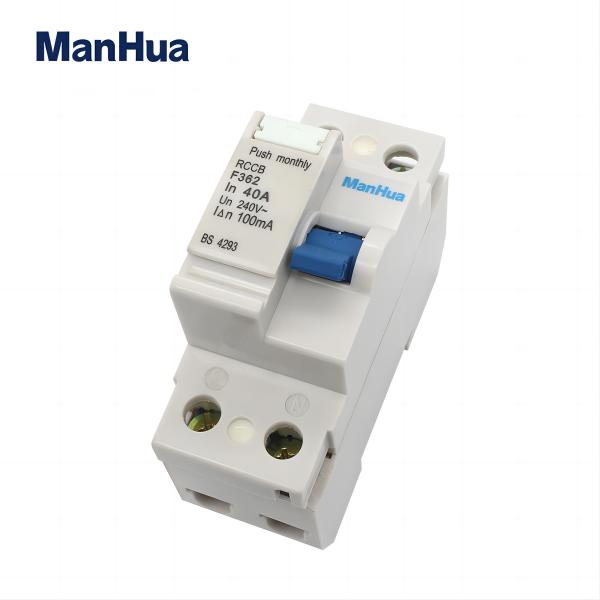

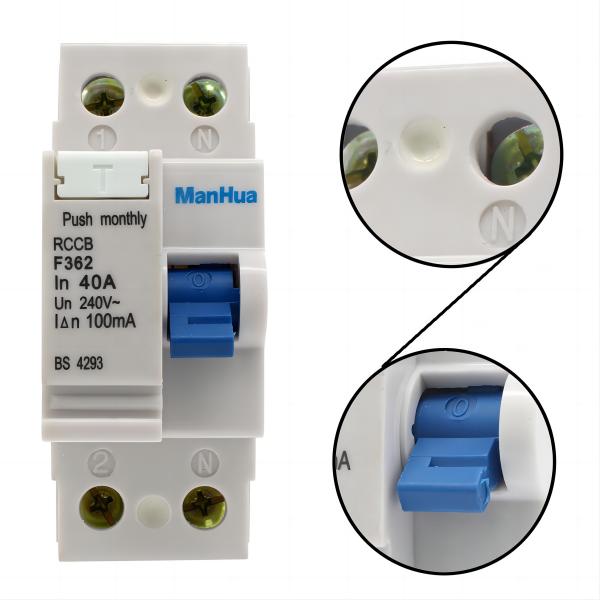

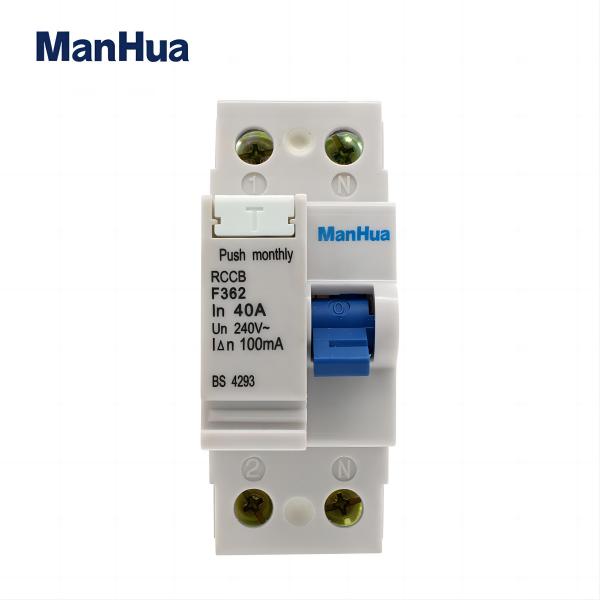

F362 40A 240VAC 100mA 2P Residual Current Circuit Breaker electric leakage protection

Rated Voltage: 220V Type: Circuit breaker
Is Smart Device: NO is_customized: Yes
Model Number: F362 Type: Residual Current
Brand Name: ManHua Origin: Mainland China
Certification: CE Rated operating current: 100mA
Poles Number: 2 Material: Brass/copper/silver
Rated current: 6A /10A/16A/20A/25A/32A/40A/63A Rated voltage: 240VAC
Elector-mechanical life: 10000 Installation: On symmetrical DIN rail 35mm, Pan Request quotation
Video PDF Download Contact us

ManHua F362 40A 240VAC 100mA 2P Residual Current Circuit Breaker electric leakage protection

Specification:

Type:F362

Pole No. :2

Rated current:40A

Rated voltage:240VAC

Rated operating current:100mA

Rated frequency : 50/60Hz

Rated residual non operating current IΔno: 0.5IΔn

Rated conditional short-circuit current Inc : 6KA

Rated conditional residual short -circuit Current I Δ c : 6KA

Tripping duration : Instantaneous tripping≤0.1s

Residual tripping current range : 0.5IΔn~IΔn

Elector-mechanical life : 10000

Installation : On symmetrical DIN rail 35mm, Panel mounting


Feature：

1.Provides protection against earth fault/leakage current and function of isolation.

2.High short-circuit current withstand capacity

3.Applicable to terminal and pin/fork type busbar connection

4.Fire resistant plastic parts endure abnormal heating and strong impact.

5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6.Independent of power supply and line voltage , and free from external interference, voltage fluctuation


Function:

Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the electric current and provide the protection of the fire caused by the electrical circuit fault.


Dimension:
