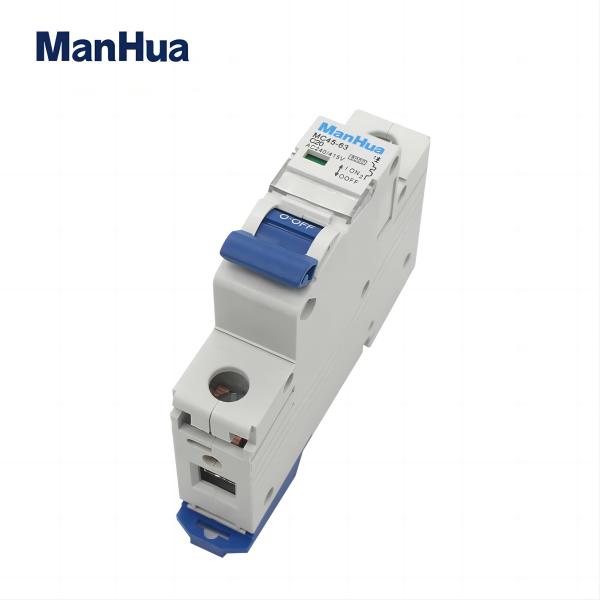

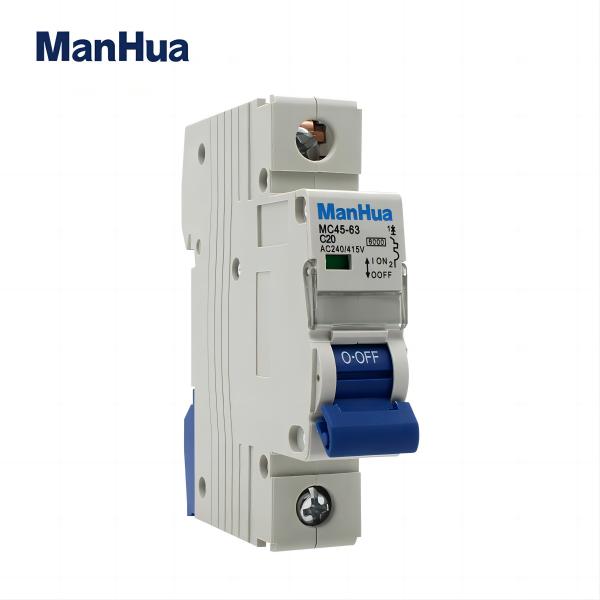

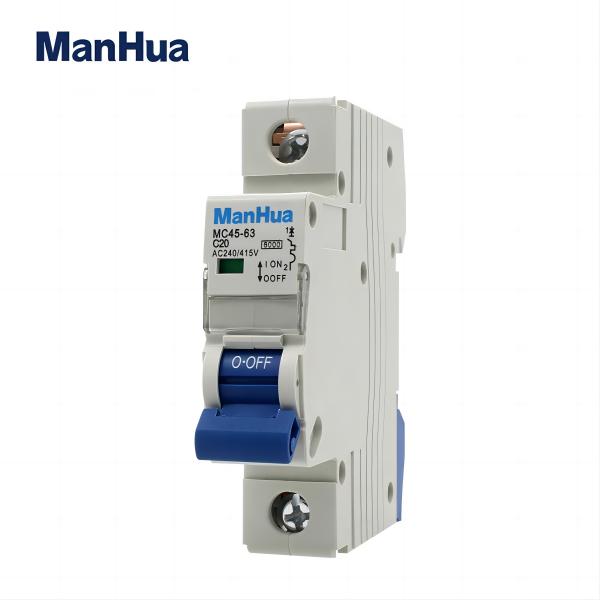

MC45-63 6KA 6000A 110V 220V Curve C MCB DPN 1P 6A 16A 20A 32A 63A CE Certificate LED color indicatorMini Circuit Breaker

is_customized: Yes Model Number: MC45-63
Type: Mini Brand Name: ManHua
COLOR: GREY Type: MINI CIRCUIT BREAKER
Voltage: Min 24VAC, AC240/415V Rated switching capacity lcn (KA): 6000A(6KA)
Indicator window: Green and Red Current: 6,10,16,20,25,32,40,63A
Tripping characteristic type: Curve B,C,D Standard: 60898-1 Request quotation
What is MCB?

Nowadays we use more commonly miniature circuit breaker or MCB in low voltage electrical network instead of fuse.
The MCB has some advantages compared to fuse.

  1. It automatically switches off the electrical circuit during abnormal condition of the network means in over load condition as well as faulty condition. The fuse does not sense but miniature circuit breaker does it in more reliable way. MCB is much more sensitive to over current than fuse.
  2. Another advantage is, as the switch operating knob comes at its off position during tripping, the faulty zone of the electrical circuit can easily be identified. But in case of fuse, fuse wire should be checked by opening fuse grip or cutout from fuse base, for confirming the blow of fuse wire.
  3. Quick restoration of supply can not be possible in case of fuse as because fuses have to be rewirable or replaced for restoring the supply. But in the case of MCB, quick restoration is possible by just switching on operation.
  4. Handling MCB is more electrically safe than fuse. Because of to many advantages of MCB over fuse units, in modern low voltage electrical network, miniature circuit breaker is mostly used instead of backdated fuse unit.



Internal Structure

Feature

1.Protection against both overload and short circuit

2.Contact position indication

3.Applicable to terminal and pin/fork type Busbar connection

4.Easy mounting onto 35mm DIN rail

IMG_3091



Technical parameter


Model Name

MC45-63

Pole No:

1P

Rated voltage:

AC 110V 220V 415V

Rated current(A):

6-63A You can choose

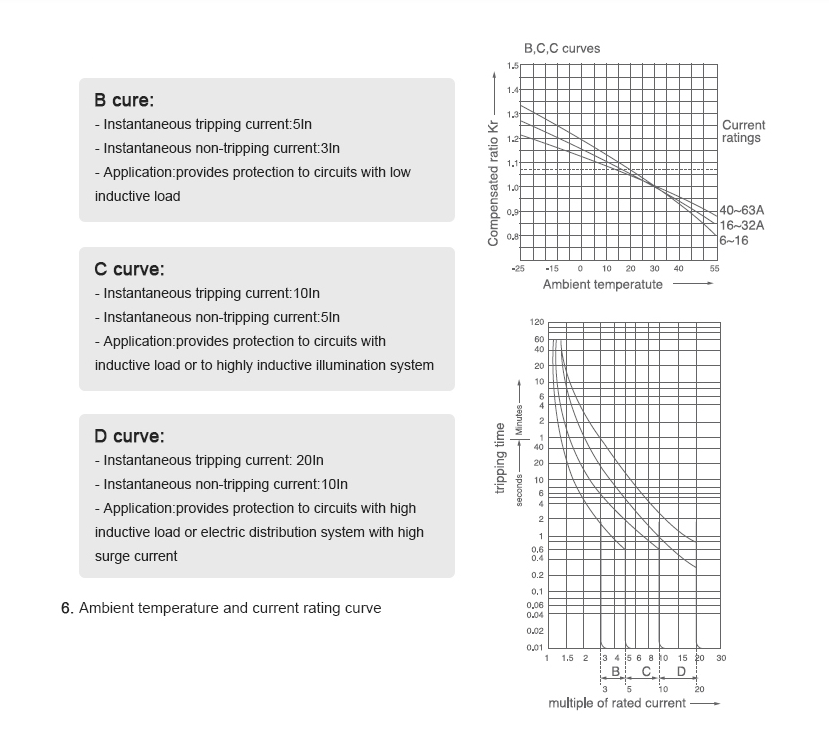

Tripping curve:

C

Rated short-circuit capacity(lcn):

6kA

Rated frequency:

50/60Hz

Energy limiting class:

3

Rated impulse withstand voltage:

6.2kV

Electro-mechanical endurance:

≥ 6000

Contact position indication

Yes, Green and Red

Connection terminal:

Screw terminal / Pillar terminal with calmp

Connection capacity:

Rigid conductor up to 25mm²

Fastening torque:

2.0Nm

Installation:

On symmetrical DIN rail 35mm / Panel mounting

Operating Mechanism of Miniature Circuit

Breaker

The operating mechanism of miniature circuit breaker provides the means of manual opening and closing operation of miniature circuit breaker. It has three-positions “ON,” “OFF,” and “TRIPPED”. The external switching latch can be in the “TRIPPED” position, if the MCB is tripped due to over-current. When manually switch off the MCB, the switching latch will be in “OFF” position. In close condition of MCB, the switch is positioned at “ON”. By observing the positions of the switching latch one can determine the condition of MCB whether it is closed, tripped or manually switched off.



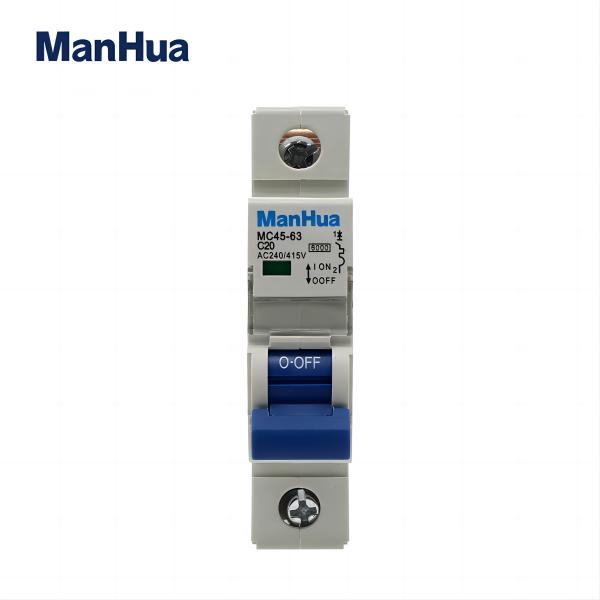

Indicator window

IMG_3094

Green Color / Red Color === On/Off

IMG_3095

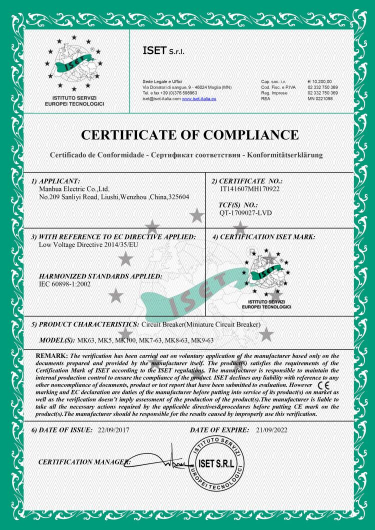

Certificate

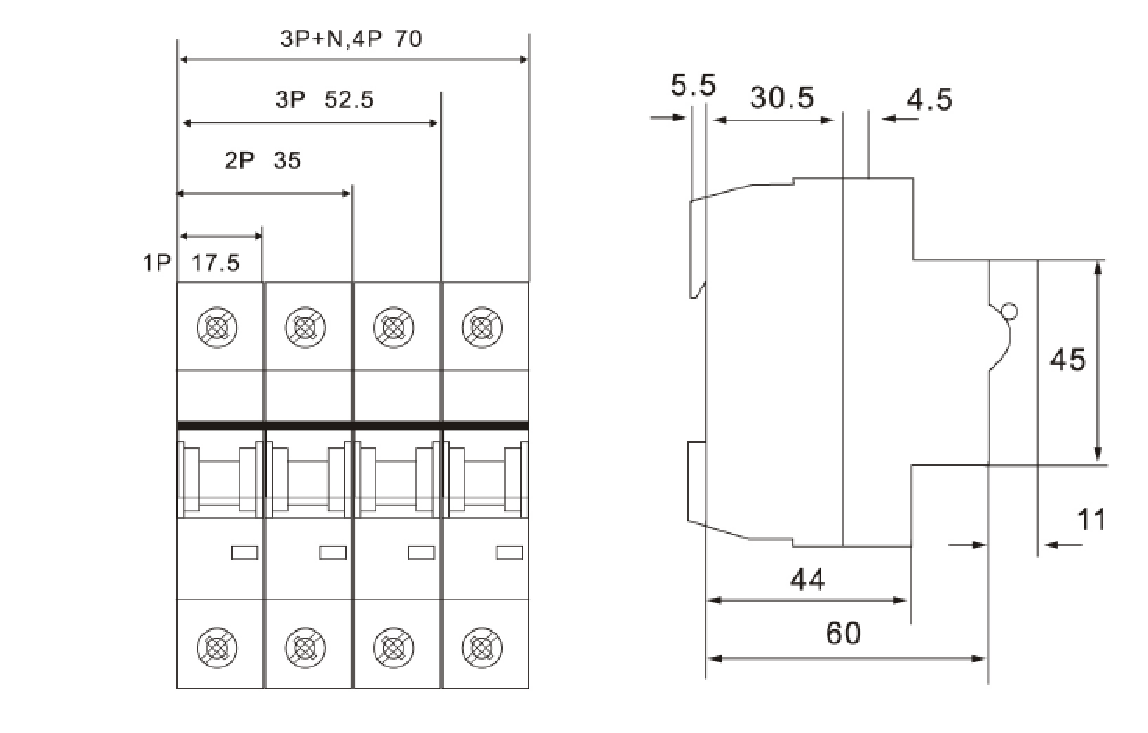

Dimension:
