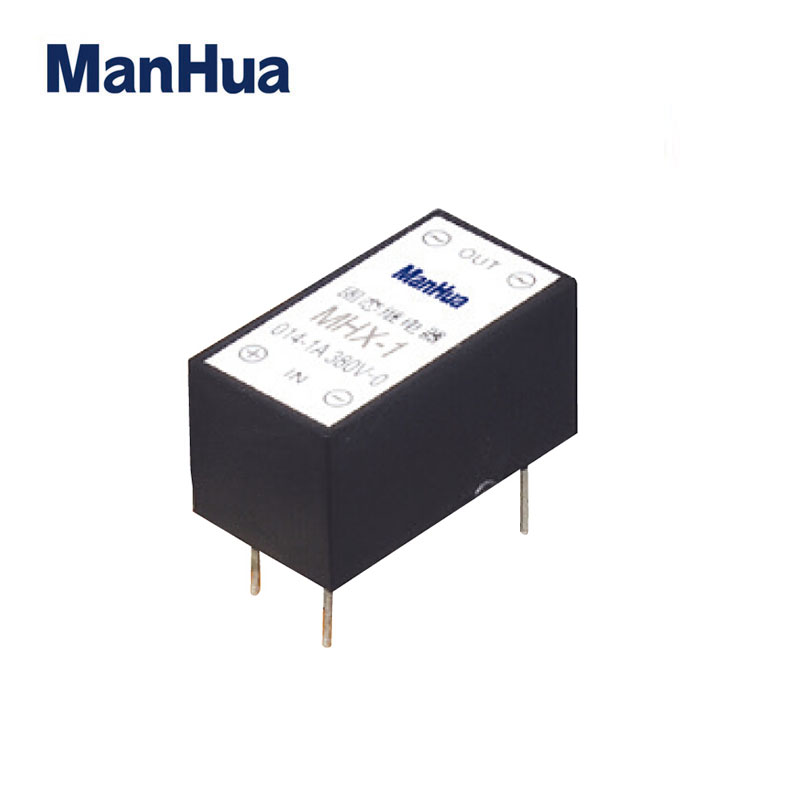

Type: MHX-1F

Load Voltage: 24-220VAC / 380VAC

Load Current: 1A

Control Voltage: DC3-14V / DC3-32V

Control Current: 6-35mA

On Voltage: ≤1.2V ≤1.5V

Off Leakage Current: ≤1.5mA

On-off Time: ≤10ms

Dielectric Strength: 1500VAC

Insulation Resistance: 500MΩ/500VDC

Ambient Temperature: -25℃ ~+70℃

Weight: 14g

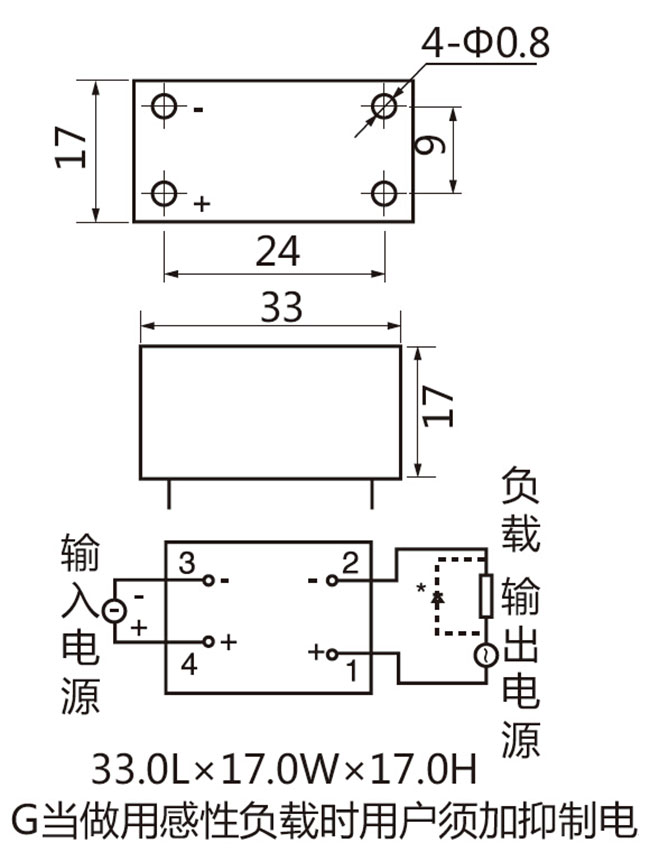

Wiring Drawing(mm):

Instruction: Used in air conditioner, money binder, Mahjong and other household appliances
