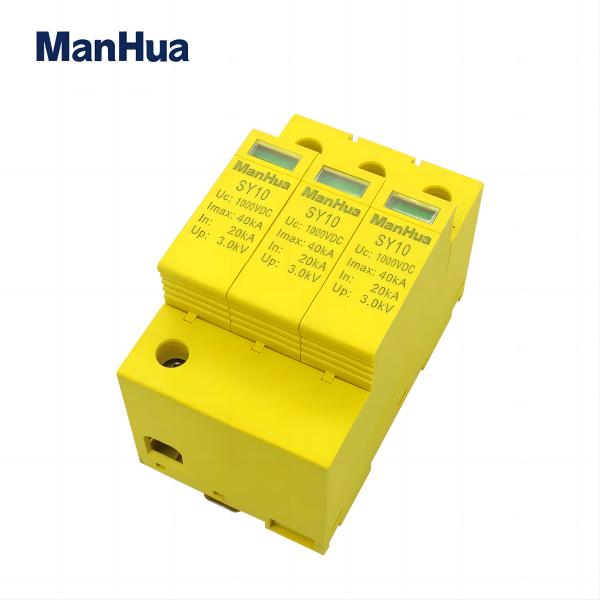

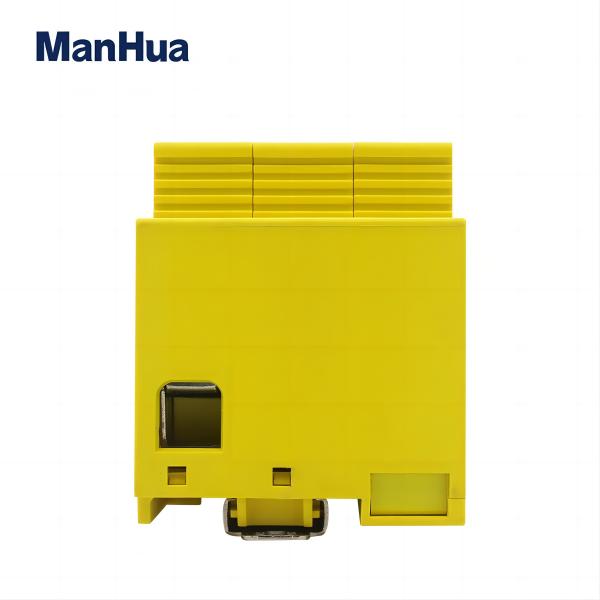

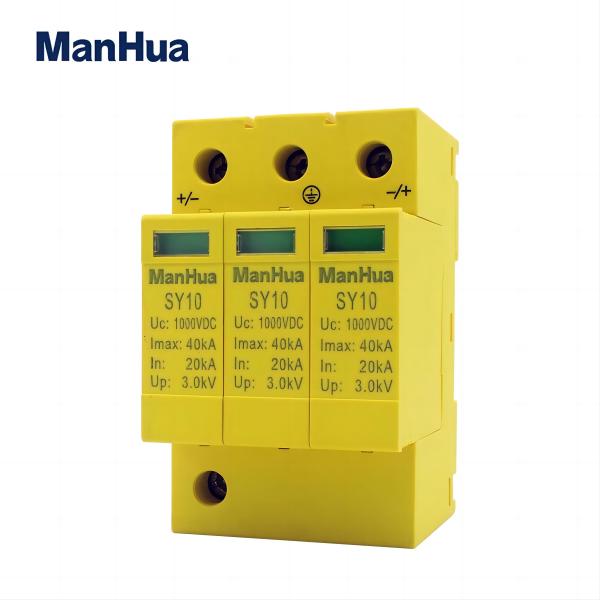

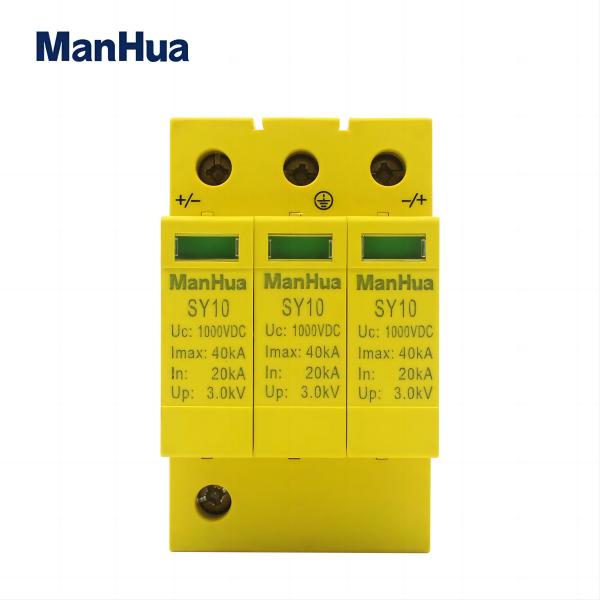

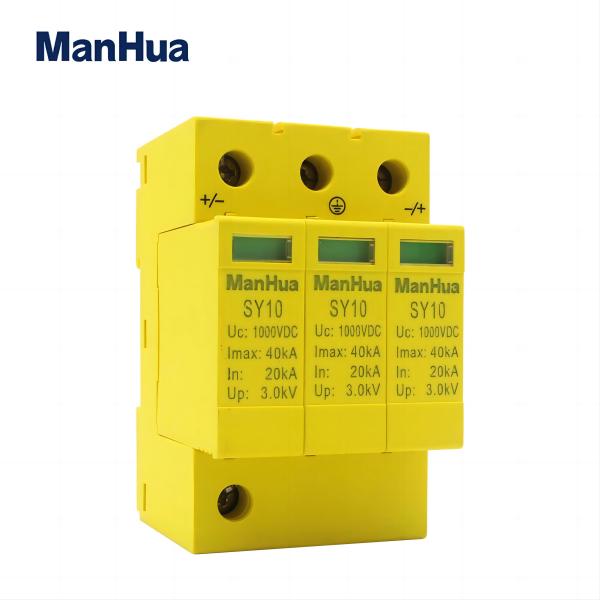

SY10 Series Introduction

SY10 series photovoltaic surge protectors offer reliable voltage protection levels, super surge current discharge capacity and safe overload characteristics.Used for lightning protection of photovoltaic low voltage distribution system.SY10 series PV SPD USES high energy MOV chip with nanosecond response speed.The combination method is flexible and convenient, and the protection function is safe and reliable.The products comply with CGC/GF 026:2013, en50539-11:2013 standard.

SY10 Series Advantages

1) Y-type structure, differential mode common mode protection mode.

2) Built-in overheat and overcurrent protection mechanism.

3) Reliable arc extinguishing device.

4) Local fault indication, convenient for timely replacement.

5) Alarm contact, remote message function.

6) Modular structure design, easy maintenance.

7) Standard 35mm guide rail design, easy installation.

Surge Protection Device (SPD) for Solar Power System / Photovoltaic or PV System

Surge protective devices(SPDs) provide protection against electrical surges and spikes, including those caused directly and indirectly by lightning. They can be utilized as complete devices or as components within electrical equipment.

Photovoltaic (PV) system converts solar energy into direct current electricity. PV system ranges from small, rooftop-mounted or building-integrated systems with capacities from a few to several tens of kilowatts, to large utility-scale power stations of hundreds of megawatts. The potential impact of lightning events increases with PV system size. At locations with frequent lightning, unprotected PV systems will suffer repeated and significant damages. This results in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events.

Sensitive electrical equipments of PV system like AC/DC Inverter, monitoring devices and PV array must be protected by surge protective devices (SPD).

Surge Protection for PV System

PV systems are exposed to both direct and indirect lightning events. The impact of lightning events increases with PV system size. Poorly protected PV systems will suffer repeated and significant damages and thus result in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events.

Sensitive electrical equipment of PV system like AC/DC inverter, monitoring devices and PV array must be protected by surge protective devices (SPD).

Technical Date

• TYPE: SY10

• Protection Class: C

• Max.Continuous Operating Voltage (Uc): 1000V/DC

• Nominal Discharge Current (8/20s) (In): 20KA

• Max. Discharge Current (8/20s) (Imax.): 40KA

• Voltage protective level CM/DM at In: ~3.6KV

• Response Time: 25ns

• Working Environment: Temperature -40C +80C; Relative humidity<95%;

• indicate deterioration: green(normal),red(malfunction)

• Material of Outer Shell: Flame retardant material

General

1:Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement
2:No load current is considered; plug and pull design, can be charged replacement, easy to maintain
3:Built-in temperature control circuit technology, high safety performance, no after flow.
4:Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
5:Optional remote monitoring interface can be used for remote monitoring.
6:High working voltages, high pass flow, high safety performance and high stability.

Feature

SY10 DC surge suppressor.

–For surge protection of photovoltaic (PV) system
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L+/L- – PE.
